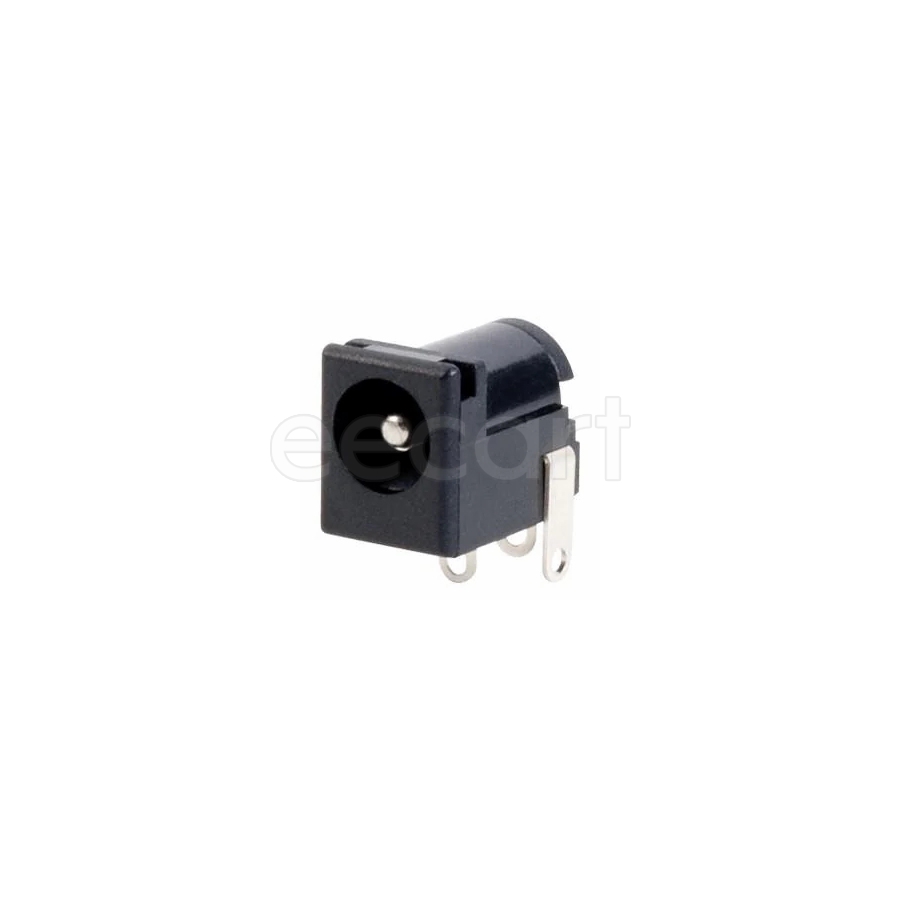

PJ-002A
Manufacturer:
Same Sky
Mfr.Part #:
PJ-002A
Datasheet:
Description:
Power Connectors Through Hole Current Rating:2.5 A Voltage Rating:24 V Jack Male
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Termination | Through Hole |
| Diameter | 2.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Voltage Rating | 24 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 50 MΩ |
| Contact Plating | Nickel |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 2.5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Housing Material | Thermoplastic |
| Outside Diameter | 6.5 mm |
| Housing Color | Black |
| Inside Diameter | 2 mm |
| Number of Conductors | 2 |
| Contact Gender | Male |
| Schedule B | 8536695050 |
| Connector Type | Jack |
Stock: 11576
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.26760 | $2.67600 |
| 25 | $0.24194 | $6.04850 |
| 50 | $0.23501 | $11.75050 |
| 100 | $0.22827 | $22.82700 |
| 300 | $0.21966 | $65.89800 |
| 500 | $0.21137 | $105.68500 |
| 1000 | $0.20340 | $203.40000 |
| 3000 | $0.19573 | $587.19000 |
| 5000 | $0.18835 | $941.75000 |
| 10000 | $0.18124 | $1812.40000 |
